Matrix MC5 Controller

What the MC5 Does

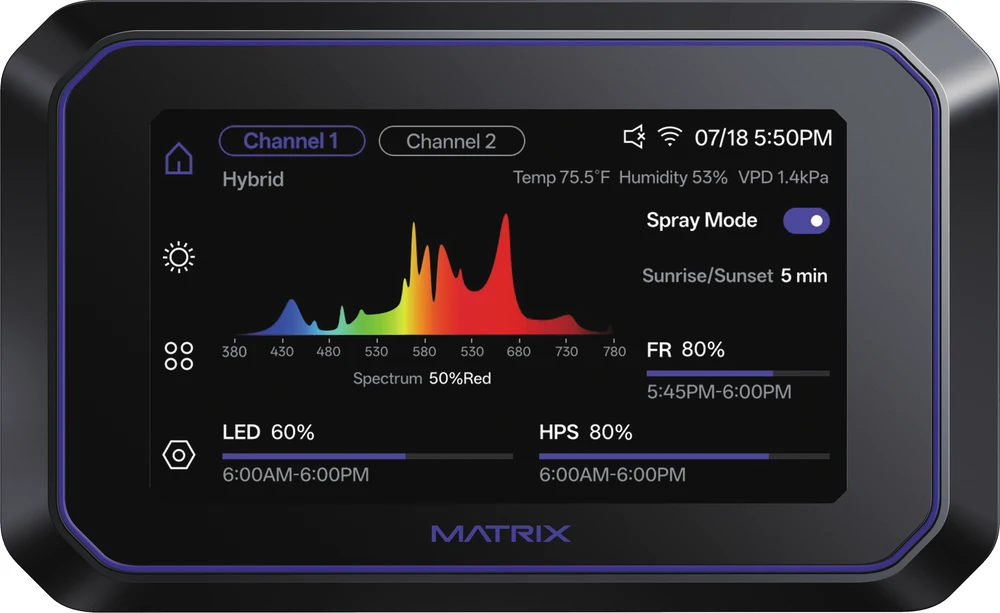

The Matrix MC5 is a purpose-built lighting controller designed exclusively for the Matrix LED and Hybrid fixture lineup. It replaces a basic timer with genuine multi-channel intelligence: independent dimming, independent scheduling, and independent on/off timing for each of the three light channels on a Matrix Hybrid 1000W — Main Spectrum (full-spectrum LED), HPS, and Far Red.

The controller connects to fixtures via RS-485 using RJ12 daisy-chain cabling, requiring no additional software, no app, and no cloud account. Schedules are created, saved, and run directly on the unit. The MC5 also supports separate group control within the same daisy-chain, so a single controller can run different lighting programs for different zones in one room without additional hardware.

Why It's Required for the Matrix Hybrid 1000W

This is a hard dependency, not an upsell. The Matrix Hybrid 1000W has no onboard dimming or spectrum adjustment. Without the MC5 connected, the fixture runs at 100% across all channels or shuts completely off — that's it. Every advanced feature the Hybrid is built around (spectrum tuning, channel scheduling, EOD far-red, UV control, dimming) requires the MC5 to be in the chain.

For operators spec'ing a Matrix Hybrid room, the MC5 needs to be on the fixture quote from day one. It's not accessory hardware — it's the control layer that makes the fixture function as designed. One MC5 can manage multiple fixtures daisy-chained together, which keeps the per-room controller cost low relative to the number of fixtures deployed.

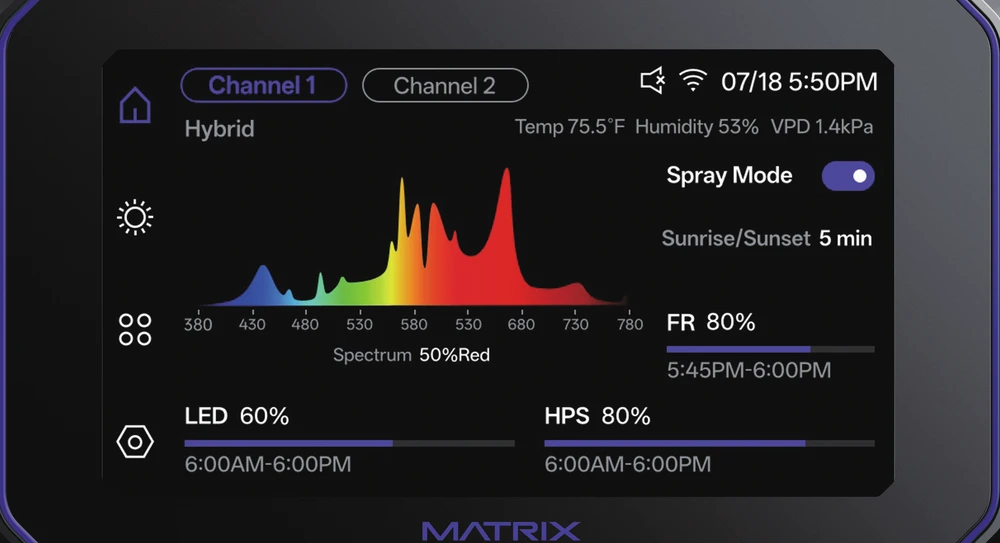

Per-Channel Dimming and Scheduling Ranges

Channel behavior is fully independent. The Main Spectrum (LED) channel dims down to 25%, or to 10% when using the controller's spray mode — useful for seedling stages or low-intensity supplemental runs. The Far Red channel also dims to 25%, giving growers control over intensity during Emerson Effect applications and EOD protocols. The HPS channel dims to a minimum of 50%, consistent with the operating range of double-ended HPS technology.

Each channel carries its own on/off schedule. That means growers can program the Far Red channel to trigger for a defined number of minutes at lights-on or lights-off — independent of when the main spectrum is running — a standard approach for End-of-Day far-red flowering initiation. These schedules are saved to the unit and repeat automatically, giving consistent cycle-over-cycle execution without manual intervention.

How It Fits a Commercial Build

In a commercial cannabis or hemp facility running Matrix fixtures, the MC5 is the room's lighting brain. A single controller handles the full daisy-chain of fixtures via RJ12 wiring — straightforward to install and stable in production environments. Because the controller supports group separation within the same chain, facilities with multiple canopy zones or split veg-to-flower timing can manage those programs from one unit.

The MC5 also ships with a temperature and humidity sensor, which enables environment-aware automation — pairing light scheduling with the ambient conditions in the room. For operators building repeatable SOPs across multiple rooms or facilities, the MC5's saveable schedule functionality means lighting programs are documented and consistent, not dependent on manual dial positions. HSC supplies the MC5 alongside the full Matrix fixture lineup nationally to licensed cannabis and hemp operators.
