Under-Canopy LED — Geared for LED Rooms

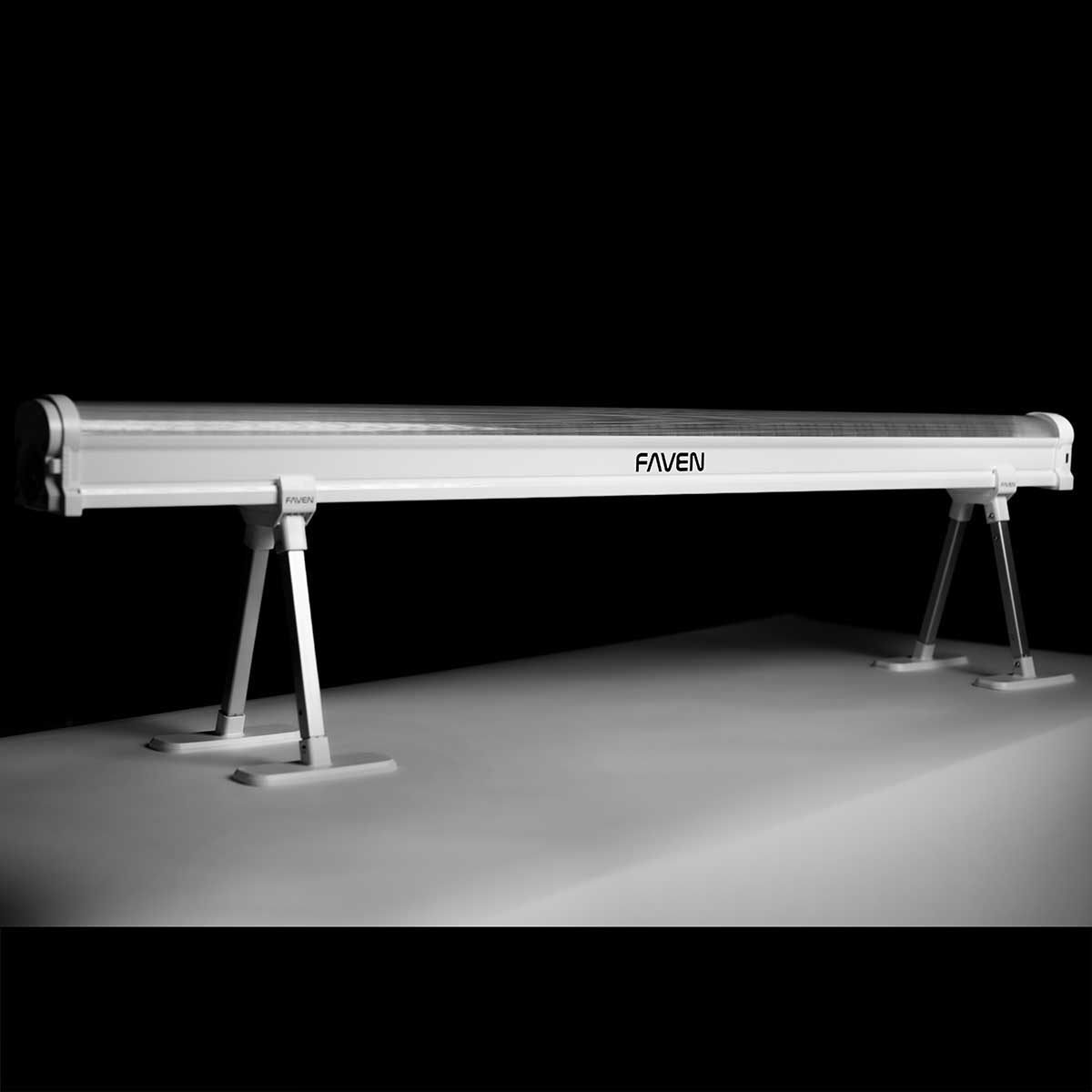

The Faven R8 is purpose-built for LED top-light environments, delivering a red-dominant under-canopy spectrum that complements full-spectrum LED overhead fixtures. With up to 2.9 μmol/J efficacy and 359 μmol/s PPF, the R8 drives 20–30% yield increases by illuminating mid and lower bud sites where top-lighting falls short.
The R8 delivers a red-dominant spectrum specifically engineered to complement LED top-lighting. The concentrated 660nm deep red peak maximizes photosynthetic efficiency in the lower canopy, while the minimal blue component avoids spectrum overlap with full-spectrum overhead LEDs.
Red-dominant spectrum designed to complement full-spectrum LED top-lights without spectral overlap. Maximum photosynthetic impact.
Fully sealed enclosure rated for wet, high-humidity grow environments. Spray-washable and dust-proof.
Connect up to 20 fixtures on a single circuit (277V). Simplified wiring reduces installation time and labor costs.
Over 85% of customers report return on investment within a single harvest cycle. 20–30% average yield increase.
| Input Power | 120W |
| Efficacy (PPE) | Up to 2.9 μmol/J |
| PPF | Up to 359 μmol/s |
| Input Voltage | 120V / 240V / 277V |
| Input Current | 1.0A (120V), 0.5A (240V), 0.43A (277V) |
| Frequency | 50/60Hz |
| Dimensions | 45.6" L × 2.9" W × 3.3" H |
| Weight | 5.72 lb / 2.6 kg |
| Thermal Management | Passive Cooling |
| Max Operating Temp | 95°F / 35°C |
| Light Distribution | 120° |
| Dimming | 40% – 100% OFF |
| LED Lifetime | >50,000 hours |
| IP Rating | IP66 |
| Daisy-Chain | 10 @120V, 17 @240V, 20 @277V |
| Certifications | ETL (Intertek #4009588), DLC HORT Listed, CE, FCC |
| Warranty | 5 Years |
Add the Faven R8 to your LED grow room and unlock 20–30% more harvestable yield from mid and lower bud sites.
