Under-Canopy LED — Geared for HPS Rooms

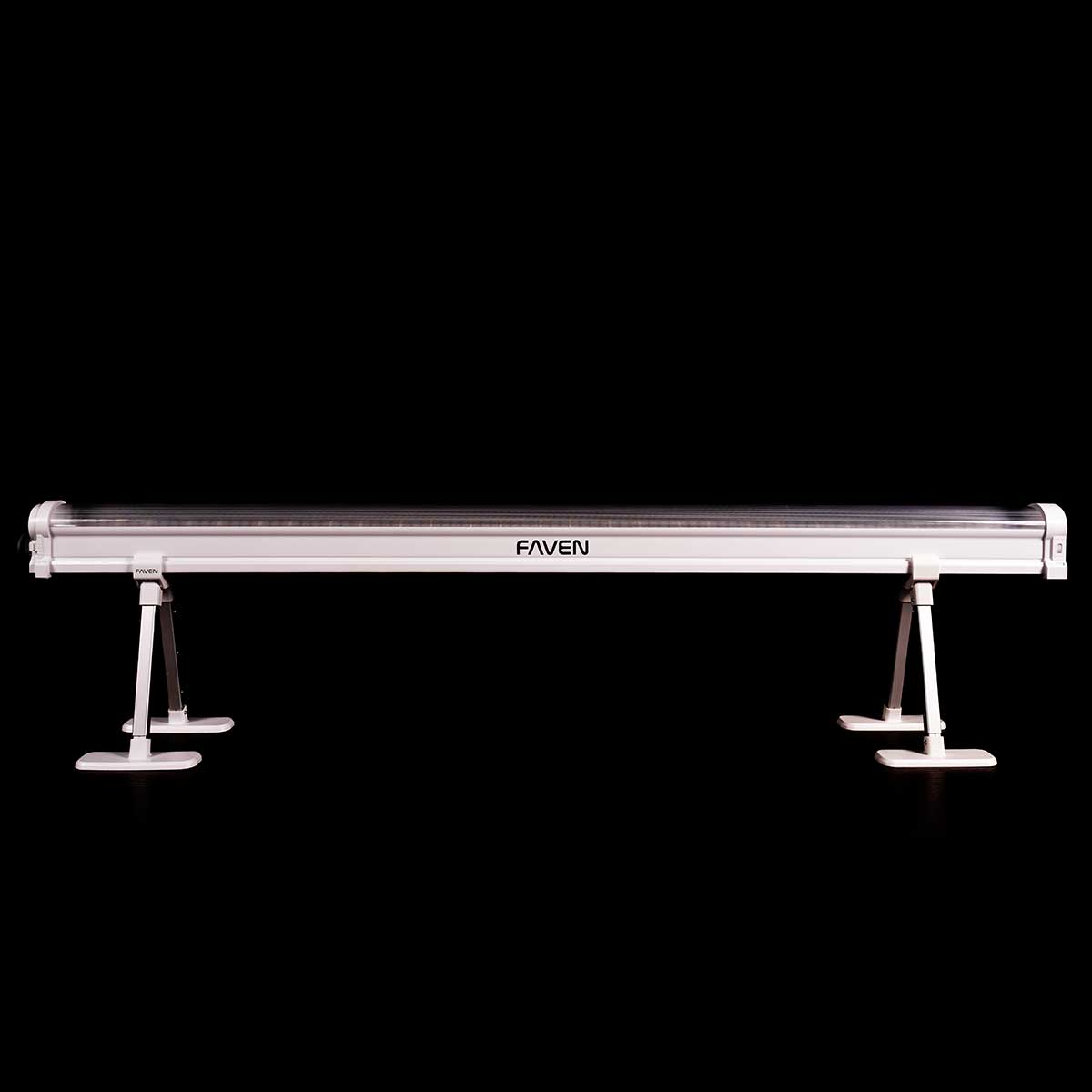

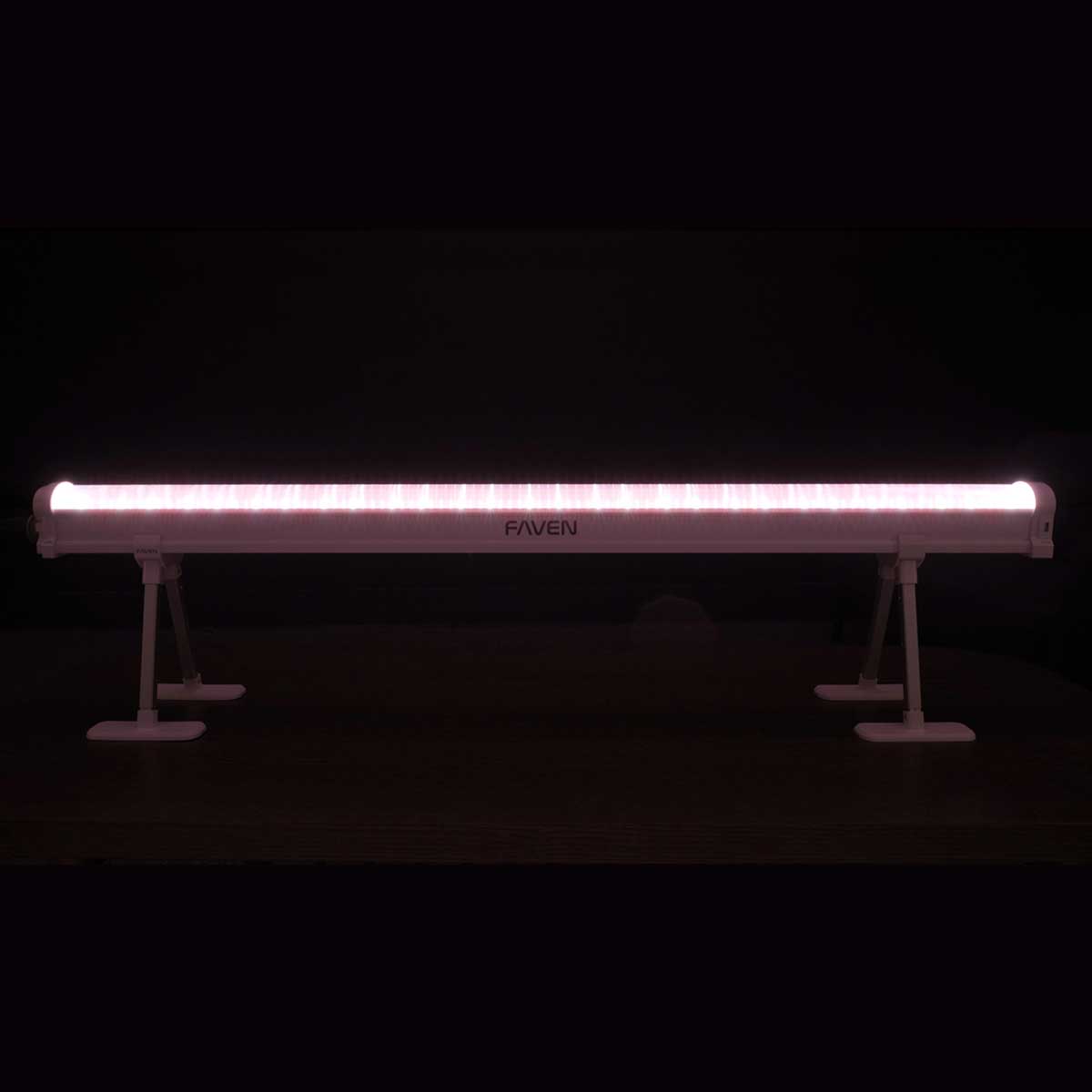

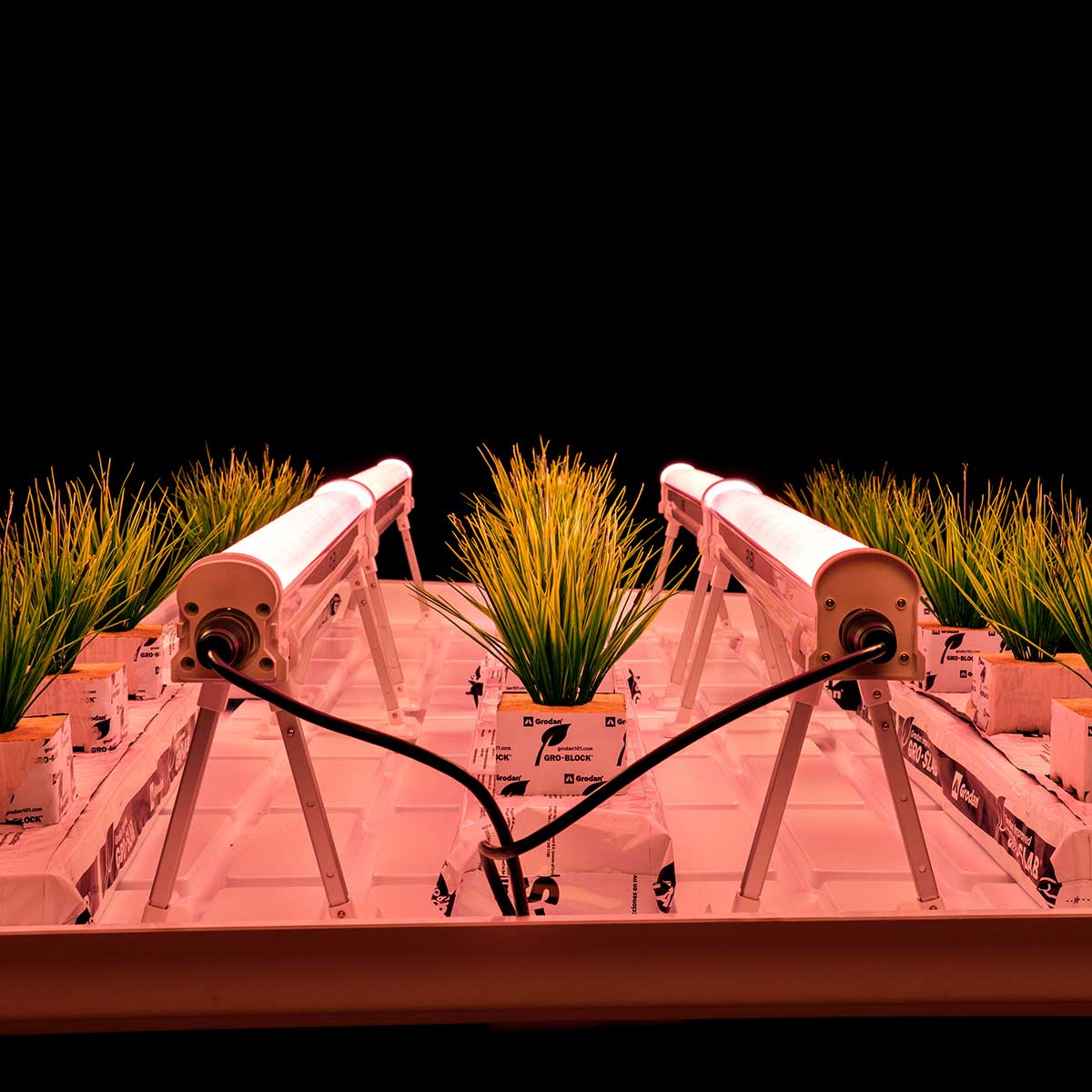

The Faven R6 is engineered specifically for HPS top-light rooms, delivering targeted under-canopy illumination that increases harvestable yield by 20–30%. With up to 2.9 μmol/J efficacy and 359 μmol/s PPF, the R6’s balanced spectrum complements HPS lighting to drive photosynthesis at mid and lower bud sites where top-lighting cannot reach.
The R6 delivers a balanced white-to-red spectrum specifically engineered to complement HPS top-lighting. The broader white component fills spectral gaps left by HPS, while the strong 660nm red peak drives photosynthesis in the lower canopy.
Balanced spectrum fills spectral gaps left by HPS top-lighting, maximizing photosynthetic efficiency across the full canopy.
Fully sealed enclosure rated for wet, high-humidity grow environments. Spray-washable and dust-proof.
Connect up to 20 fixtures on a single circuit (277V). Simplified wiring reduces installation time and labor costs.
No fans, no moving parts. Silent operation with zero maintenance required. >50,000 hour LED lifetime.
| Efficacy (PPE) | Up to 2.9 μmol/J |
| PPF | Up to 359 μmol/s |
| Input Power | 120W |
| Input Voltage | 120V / 240V / 277V |
| Input Current | 1.0A (120V), 0.5A (240V), 0.43A (277V) |
| Frequency | 50/60Hz |
| Dimensions | 45.6″ L × 2.9″ W × 3.3″ H |
| Weight | 5.72 lb / 2.6 kg |
| Thermal Management | Passive Cooling |
| Max Operating Temp | 95°F / 35°C |
| Light Distribution | 120° |
| Dimming | 40% – 100% OFF |
| LED Lifetime | >50,000 hours |
| IP Rating | IP66 |
| Daisy-Chain Capacity | 10 @120V, 17 @240V, 20 @277V |
| Certifications | ETL (Intertek #4009588), DLC HORT, CE, FCC |
| Warranty | 5 Years |
Add the Faven R6 to your HPS grow room and unlock 20–30% more harvestable yield from mid and lower bud sites.
